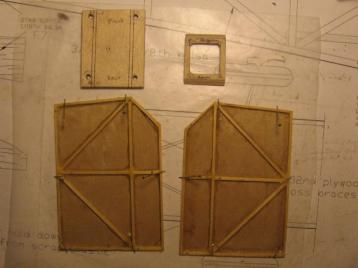

02-15-14: I epoxied the frames to 1/64" ply and trimmed/sanded the
resulting assemblies to precisely the correct (and same) dimensions.
Here they are pictured after sealing with a carpenter's glue based
sealer. They are pinned down to prevent warping while
drying.
Also pictured here are two parts made from 1/8" ply. On the left
is the base of the pod, and on the right is a frame-shaped piece that
covers the diagonal area. It serves as an air in-let and as a
place to run the power and throttle cables.
|
